Air Operated Fusing Machine

Introducing our high-performance Air Operated Fusing Machine, a superlative solution designed to elevate your fabric bonding processes to astounding levels with unmatched efficiency. As a leading exporter, manufacturer, supplier, and service provider with over 21 years of unrivaled expertise, we bring you premium models including the BDF 1620, BSF 1015, BSF 1620, and the Double Bed Fusing Machine with Compressor. Engineered with cutting-edge technology, our machines boast outstanding advantages such as consistent pressure application for superior bonding, energy-efficient operation for reduced costs, user-friendly controls for effortless handling, robust build quality ensuring longer operational life, and top-notch compatibility with a wide range of fabrics and applications. Outperforming the competition with impressive innovations, they represent the new ideal for precision and productivity in garment manufacturing. Perfect for businesses of any scale, our fusing machines deliver the best deal in terms of durability and reliability. Available for supply across All India, these remarkable machines promise to significantly improve operational output and set a higher benchmark in the industry.

BSF 1015 Air Operated Fusing Machine

MOQ : 1 Unit

  • Accuracy
  • 2C Temperature Accuracy
  • Color
  • Blue & White
  • Control System
  • Other, Digital Electronic Control Panel
  • Cooling System
  • Blower Cooling
  • Dimension (L*W*H)
  • 1000 x 650 x 1200 mm
  • Drive
  • Pneumatic Drive
  • Features
  • Timer Function, Digital Display, Emergency Stop, Auto Pressure Release
  • Frame Type
  • Heavy Duty Steel Frame
  • Frequency
  • 50 Hz
  • Lubricating System
  • Manual Lubrication
  • Machine Type
  • Air Operated Fusing Machine
  • Model No
  • BSF 1015
  • Motor Power
  • 0.5 HP
  • Noise Level
  • <60 dB
  • Operating Temperature
  • Up to 200C
  • Operating Type
  • Other, Semi-Automatic
  • Power
  • 2.2 kW
  • Power Rating
  • 2200 W
  • Power Source
  • Other, Compressed Air (Pneumatic)
  • Pressure
  • Adjustable up to 6 bar
  • Product Type
  • Other, Air Operated Fusing Machine
  • Production Capacity
  • Up to 500 pcs/hr
  • Surface Treatment
  • Other, Powder Coated
  • Technology
  • Other, Air Operated Fusing
  • Usage & Applications
  • Garment Fusing, Interlining, Fabric Laminating
  • Voltage
  • 220V / 50Hz
  • Weight (kg)
  • Approx. 150 kg

BSF 1620 Air Operated Fusing Machine

MOQ : 1 Unit

  • Accuracy
  • 1C Temperature Accuracy
  • Color
  • Blue & White
  • Control System
  • Other, Digital Temperature and Timer Control
  • Cooling System
  • No Built-in Cooling
  • Dimension (L*W*H)
  • 650 x 600 x 450 mm
  • Drive
  • Pneumatic
  • Features
  • Uniform pressure and temperature distribution, energy efficient, compact design
  • Frame Type
  • Steel Frame
  • Frequency
  • 50 Hz
  • Lubricating System
  • Manual Lubrication
  • Machine Type
  • Air Operated Fusing Machine
  • Model No
  • BSF 1620
  • Noise Level
  • Low
  • Operating Temperature
  • Up to 200C
  • Operating Type
  • Semi Automatic
  • Power
  • 1.2 kW
  • Power Rating
  • 1.2 kW
  • Power Source
  • Other, Air Operated
  • Pressure
  • Adjustable
  • Product Type
  • Other, Fusing Machine
  • Production Capacity
  • 350 Pieces/Hour
  • Surface Treatment
  • Other, Powder Coated
  • Technology
  • Other, Air Pressure Fusing
  • Usage & Applications
  • Garment and textile fusing, Interlining fabrics
  • Voltage
  • 220 V
  • Weight (kg)
  • 75 kg

BDF 1620 Air Operated Fusing Machine

MOQ : 1 Unit

  • Accuracy
  • 2C temperature accuracy
  • Color
  • Grey & Blue
  • Control System
  • Other, Digital Temperature & Time Control
  • Cooling System
  • Inbuilt Cooling Fan with Blower
  • Dimension (L*W*H)
  • 1600 x 650 x 1200 mm
  • Drive
  • Pneumatic Drive
  • Features
  • Auto-belt correction, Double heating plate, Emergency stop, Energy-saving
  • Frame Type
  • Heavy Duty Metal Frame
  • Frequency
  • 50/60 Hz
  • Lubricating System
  • Self-lubricating mechanism
  • Machine Type
  • Air Operated Fusing
  • Model No
  • BDF 1620
  • Motor Power
  • 0.18 KW
  • Noise Level
  • Low Noise Operation (< 70 dB)
  • Operating Temperature
  • 0-220C Adjustable
  • Operating Type
  • Automatic
  • Power
  • 2.2 KW
  • Power Rating
  • 2.2 KW
  • Power Source
  • Other, Electric and Air Operated
  • Pressure
  • 0.4-0.6 MPa adjustable
  • Product Type
  • Other, Air Operated Fusing Machine
  • Production Capacity
  • 500-700 pieces/hour
  • Surface Treatment
  • Other, Powder Coated
  • Technology
  • Other, Pneumatic Technology
  • Usage & Applications
  • Garment fusing, collar, placket, and other fabric lamination
  • Voltage
  • 220V/380V
  • Weight (kg)
  • Approx 185 kg

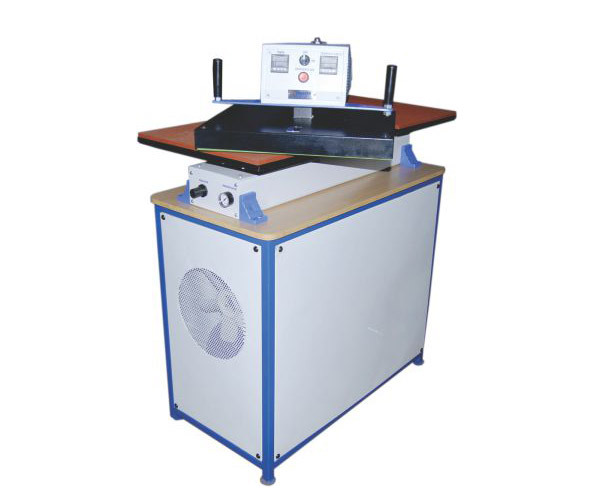

Double Bed Fusing Machine with Compressor

MOQ : 1 Unit

  • Accuracy
  • 0.5C temperature control
  • Color
  • Blue & White
  • Connectivity Options
  • Panel Interface/Manual Switches
  • Control System
  • Other, Microprocessor Digital Controller
  • Cooling System
  • Air Cooling (with Compressor)
  • Dimension (L*W*H)
  • 1800 x 1200 x 1450 mm
  • Drive
  • Belt Driven (Electric Motor)
  • Features
  • Double bed, energy efficient, precise temperature & pressure control, even heat distribution, safety interlocks
  • Frame Type
  • Heavy Duty Steel Frame
  • Frequency
  • 50/60 Hz
  • Lubricating System
  • Automatic Lubrication
  • Machine Type
  • Double Bed Pneumatic Fusing
  • Model No
  • DBFM-C123X
  • Motor Power
  • 1.1 kW
  • Noise Level
  • 70 dB
  • Operating Temperature
  • 100C - 220C
  • Operating Type
  • Semi Automatic
  • Power
  • 5.5 kW
  • Power Rating
  • 5.5 kW
  • Power Source
  • Other, Electric & Pneumatic (with Compressor)
  • Pressure
  • 0.2-0.8 MPa (Adjustable)
  • Product Type
  • Other, Double Bed Fusing Machine
  • Production Capacity
  • 900 pieces/hour
  • Surface Treatment
  • Other, Powder Coated
  • Technology
  • Other, Hot Press Fusing
  • Usage & Applications
  • Fabric fusing/garment manufacturing/interlining/lamination
  • Voltage
  • 220 V / 380 V
  • Weight (kg)
  • 480 kg
