Textile Curing Machine

Get a Price/Quote

Product Details:

Product Type Textile Curing Machine
General Use Textile Curing, Fixing Prints and Dyes on Fabric
Material Mild Steel Body
Type Continuous Belt Curing
Weight (kg) Approx. 1500 kg
Coating Speed 10-40 m/min adjustable
Coating Head Single/Double Head (optional)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Textile Curing Machine Price And Quantity

Minimum Order Quantity 1 Unit

Textile Curing Machine Product Specifications

Coating Width 1600 mm
Humidification System Yes
Glue Type Applicable for Heat-activated Adhesives
Control System Digital Temperature and Speed Control
Rewinder Type Standard Rewinder
Computerized No
General Use Textile Curing, Fixing Prints and Dyes on Fabric
Unwinder Type Standard Unwinder
Voltage 380 V, 3 Phase, 50 Hz
Power Source Electric
Coating Head Single/Double Head (optional)
Coating Material Textile Fabrics, Nonwovens
Heating System Electric/Infrared/Hot Air
Automatic Semi-Automatic
Weight (kg) Approx. 1500 kg
Coating Speed 10-40 m/min adjustable
Feature Energy Efficient, Uniform Curing, Precision Control
Type Continuous Belt Curing
Product Type Textile Curing Machine
Drive Type Electric Motor Driven
Color Industrial Grey/Blue
Dimension (L*W*H) 4200 x 2200 x 2300 mm
Rewinding Width Up to 1800 mm
Power Consumption 18-25 kW
Unwinding Width Up to 1800 mm
Material Mild Steel Body

Safety Features Overheat Protection, Emergency Stop Switch
Application Screen Printing, Pigment Fixation, Sublimation, Coating Drying
Max Fabric Thickness Up to 10 mm
Air Circulation High-efficiency Blower System
Installation Type Floor Mounted
Number of Heating Zones 3
Display Type Digital Display Panel
Noise Level <75 dB
Belt Material Heat-resistant Teflon Coated Conveyor
Service Support On-site Support Available
Working Temperature Range Up to 200C
Cooling System Integrated Cooling Section After Curing

Textile Curing Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Unit Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

Experience an astonishing textile transformation with our exquisite Textile Curing Machine, available to buy now at a reduced price for a limited stock. Decorated with advanced features, this robust, floor-mounted machine operates up to 200C, curing and fixing prints with precision. Enjoy silent operation (<75 dB), a heat-resistant Teflon conveyor belt, and a high-efficiency blower for uniform results. With digital display controls, safety mechanisms, and an integrated cooling zone, it's ideal for screen printing, sublimation, and pigment fixation. Don't miss out on this exclusive, high-efficiency marvel, crafted for the textile industry.

Versatile Application and Feature-rich Operation

The Textile Curing Machine is engineered for diverse applications including screen printing, pigment fixation, sublimation, and coating drying. To use, simply load your fabric up to 10 mm thick onto the heat-resistant Teflon conveyor and adjust the digital controls for optimal speed (10-40 m/min) and temperature (up to 200C). With three precise heating zones, a robust mild steel body, and energy-efficient systems, this machine guarantees uniform curing and decorated, long-lasting results on a wide range of media.

Swift Supply and Reliable Shipment Details

We ensure quick dispatch and efficient shipment of your Textile Curing Machine from our preferred FOB port in India. Each unit is securely packaged in durable wooden crates for safe transport, meeting the highest standards. For businesses needing assurance, sample units are available upon request. From supply to delivery, our team is dedicated to providing prompt support and seamless handling of your orders, making your investment effortless and reliable.

FAQ's of Textile Curing Machine:

Q: How does the Textile Curing Machine maintain even temperature and consistent results?

A: The machine utilizes three heating zones and a high-efficiency blower system to circulate air uniformly, ensuring that each section of fabric receives the proper temperature for curing and fixation.

Q: What applications is this machine suitable for?

A: It is designed for textile curing, fixing prints, sublimation transfer, pigment fixation, coating drying, and working with heat-activated adhesives on a variety of textile fabrics and nonwovens.

Q: What safety features are included in the curing machine?

A: The machine comes equipped with overheat protection, an emergency stop switch, and a robust digital control system to monitor temperature and speed, providing a safe operating environment.

Q: When should I use the integrated cooling section?

A: The built-in cooling section should be used immediately after the curing process to rapidly reduce fabric temperature, ensuring stable results and preventing distortion or shrinkage of textiles.

Q: Where can I receive on-site service support for installation or maintenance?

A: On-site support is available across India for installation, training, and ongoing maintenance, ensuring trouble-free operation and timely resolution of technical issues.

Q: What is the process for adjusting fabric speed and temperature settings?

A: You can use the digital display panel to adjust curing speed (10-40 m/min) and temperature (up to 200C), offering precise control for various fabric types and curing requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Curing Machine' category

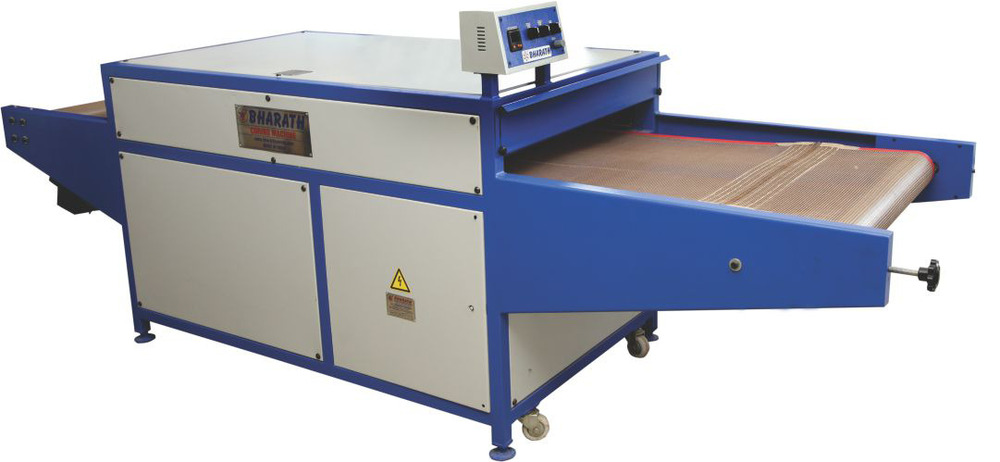

Transfer Sticker Curing Machine Minimum Order Quantity : 1 Humidification System : Other, Integrated humidification Glue Type : Other, Waterbased / solventbased Coating Width : 600 mm Voltage : 380V / 50Hz Unwinder Type : Other, Shaftless hydraulic unwinder General Use : Transfer sticker curing and drying Rewinder Type : Other, Automatic rewinder Computerized : Yes Control System : Other, PLC with digital display Coating Material : Other, PU, PET, transfer stickers Heating System : Other, Electric heating with hot air circulation Automatic : Yes Product Type : Transfer Sticker Curing Machine Type : Other, Automatic curing machine Weight (kg) : 1100 kg Coating Speed : 830 m/min Feature : Other, Long life, easy operation, precise temperature control Coating Head : Other, Comma roller / gravure roller Power Source : Electric Unwinding Width : 600 mm Material : Other, Mild steel, stainless steel Drive Type : Other, AC frequency drive Power Consumption : 15 kW Color : Industrial Blue & Silver Dimension (L*W*H) : 6500 x 1500 x 1800 mm Rewinding Width : 600 mm

Send Inquiry

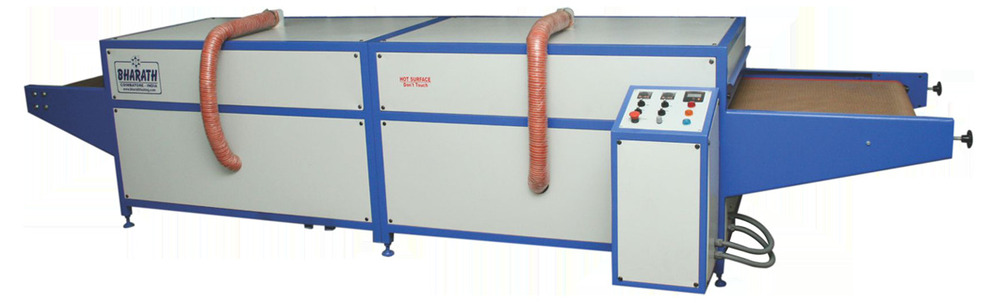

Multi Process Conveyor Dryer Curing Machine Minimum Order Quantity : 1 Humidification System : Other, Integrated mist humidifier with digital control Glue Type : Other, Waterbased, solventbased compatible Coating Width : 1600 mm max Voltage : 380V / 50Hz / 3 Phase Unwinder Type : Other, Manual/Automatic tension control unwinder General Use : Multiprocess drying and curing for textiles, prints, and industrial materials Rewinder Type : Other, Surface or Central drive (customized) Computerized : Other, PLC touchscreen control Control System : Other, Fully Automatic with user presets Coating Material : Other, Textile, paper, film, nonwoven Heating System : Other, Infrared & Hot Air Circulation Automatic : Yes Product Type : Conveyor Dryer Curing Machine Type : Other, Multiprocess, continuous conveyor dryer Weight (kg) : 1250 Coating Speed : 1060 m/min (variable) Feature : Other, Highenergy efficiency, rapid curing, precise temperature control Coating Head : Other, Knifeoverroll / Comma bar (optional) Power Source : Electric Unwinding Width : 1800 mm max Material : Other, Mild steel body, stainless steel conveyor Drive Type : Other, AC Motor with inverter drive control Power Consumption : 24 kW (approx.) Color : Industrial blue with stainless steel finish Dimension (L*W*H) : 5800*2600*2050 mm Rewinding Width : 1800 mm max
